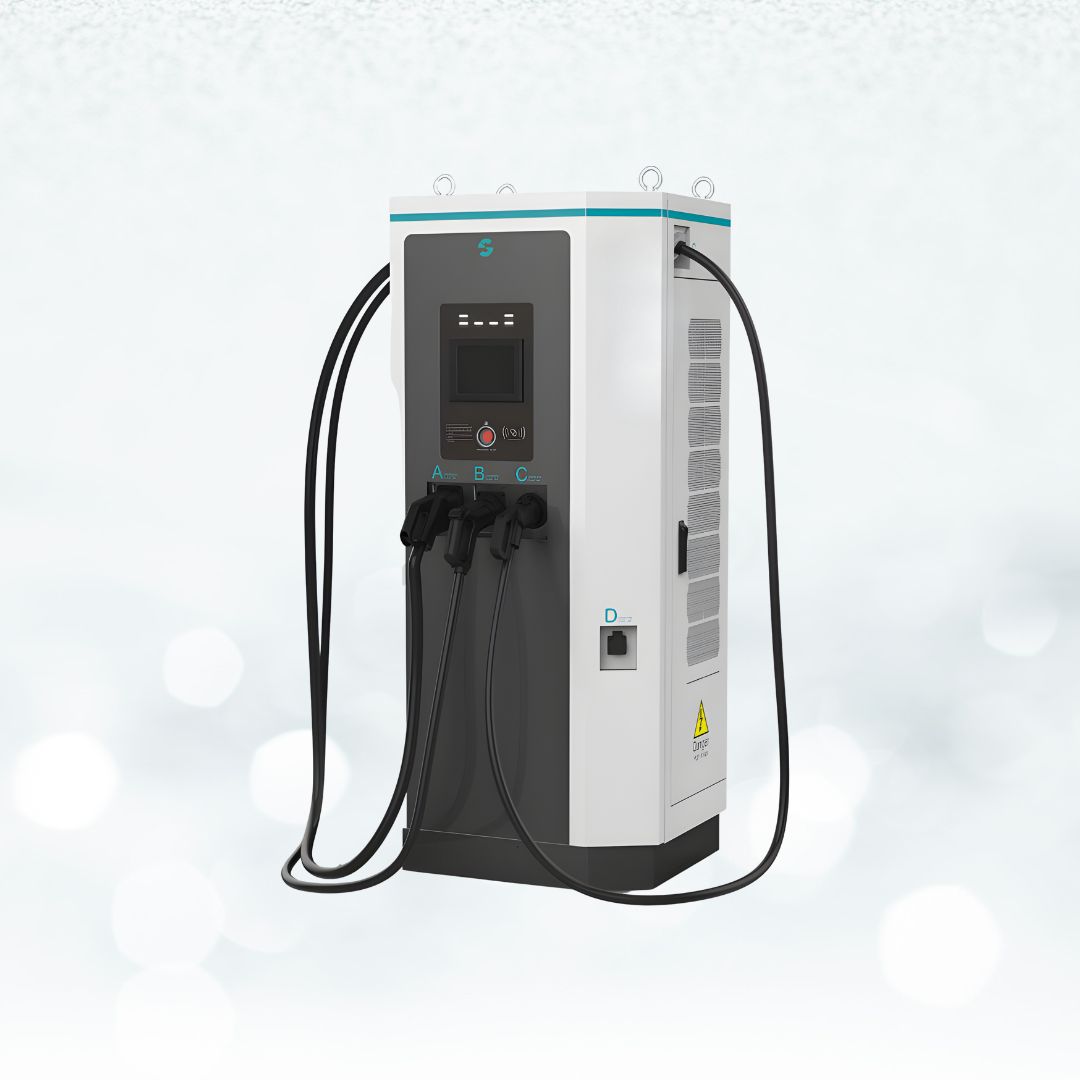

DC AC Combo 3-in-1 EV Charger
Review the product specifications below and speak with our team about your project requirements.
- Input Voltage
- 400V±15% / 440V±15% / 480V±15%
- Input Voltage Type
- TN-S
- Working Frequency
- 45~65Hz
- Power Factor
- ≥0.99
Need help choosing? Talk to our team
Product information
Technical Specifications
| Category | Details |
|---|---|
| Input Voltage | 400V±15% / 440V±15% / 480V±15% |
| Input Voltage Type | TN-S |
| Working Frequency | 45~65Hz |
| Power Factor | ≥0.99 |
| Efficiency | ≥94% |
| Rated Voltage | DC – CHAdeMO 500Vdc; CCS 1000Vdc; GBT 1000Vdc; AC – Type-2 400V; GBT 400V |
| Max Output Current | DC – CHAdeMO 125A; CCS 200A; GBT 250A; AC – Type-2 63A; GBT 32A |
| Max Output Power | DC 60kW; AC 22kW/44kW (60kW), DC 90kW; AC 22kW/44kW (90kW), DC 120kW; AC 22kW/44kW (120kW) |
| Display | 8″ LCD Touch Screen |
| Emergency Stop Button | Yes |
| Payment | Mobile APP / RFID / POS |
| Network Connection | 4G (GSM or CDMA) / Ethernet / WIFI |
| Communication Protocols | OCPP1.6 or OCPP2.0 |
| Working Temperature | -30°C ~ +55°C |
| Storage Temperature | -35°C ~ +55°C |
| Operating Humidity | ≤95% Non-Condensing |
| Protection | IP54 |
| Acoustic Noise | <60dB |
| Cooling Method | Forced Air-Cooling |
| Dimension (W x D x H) | 750mm x 640mm x 1850mm |
| Weight | 340kg ~ 420kg |
| Cable Length | 5m or 7m |
| Certificate | TUV CE / IEC61851-1 / IEC61851-23 / IEC61851-21-2 |
| Charging Interface | DIN70121 / DIN70122 / ISO15118 |
