Description

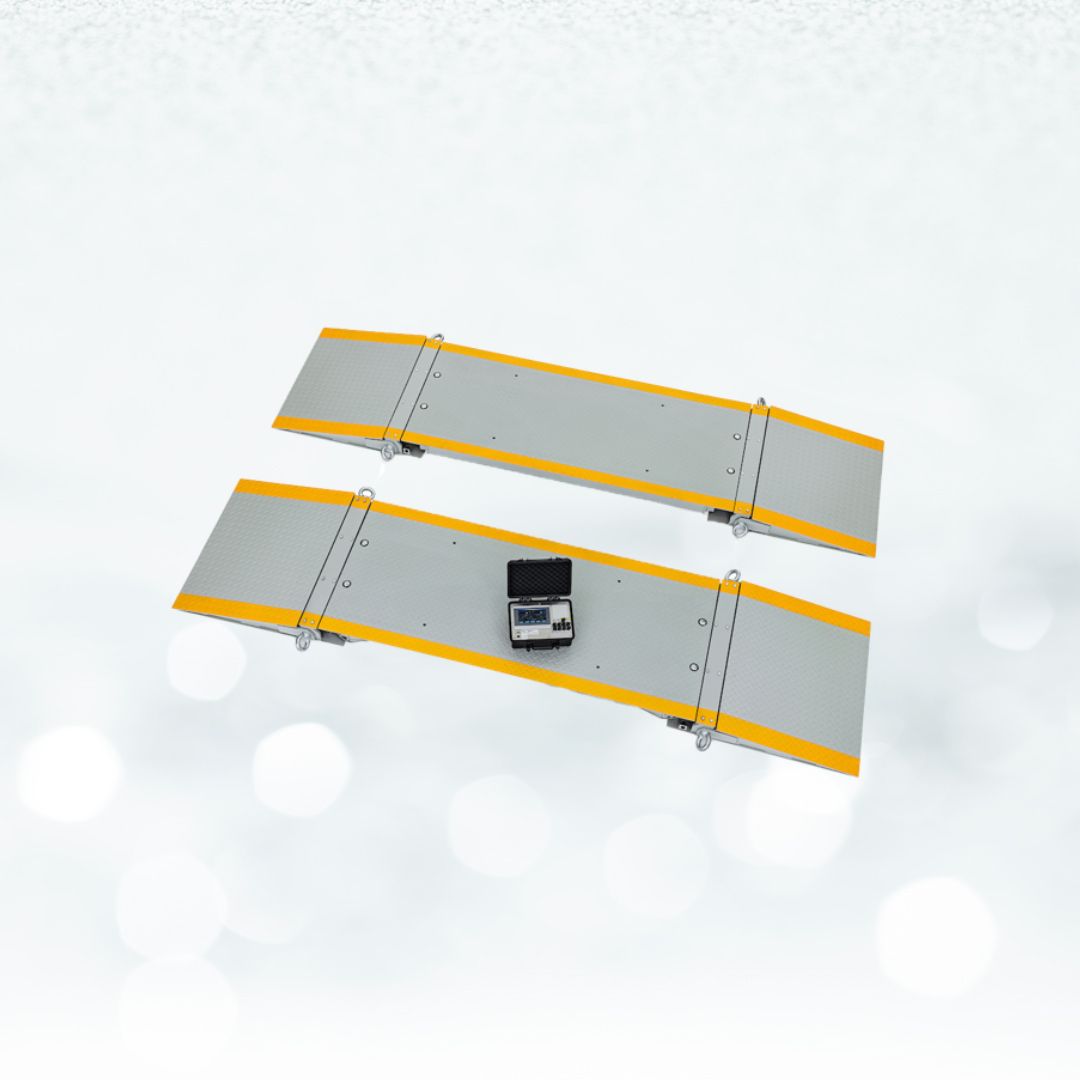

The CM80T WIM Scale offers precise weighing for heavy trucks with a 40-ton axle capacity. It features both dynamic and static weighing accuracy, meeting OIML III and JJG907-2006 standards. The scale is built with a full-steel structure, IP68 protection, and CE-certified load cells. With a lifespan of over 10 years, it is ideal for vehicle weighing in outdoor environments, offering reliable performance and easy computer integration through RS232.
Specifications
- Structure: Full-steel
- Accuracy:
- Static accuracy: OIML III
- Dynamic accuracy: JJG907-2006
- Speed ≤30 km/h: Error ≤5%
- Speed range: 0~30 km/h
- Nominal Capacity: 40 tons/axle
- Division: 10 kg
- Platform Size: 3500mm * 900mm
- Number of Load Cells: 4 Nos
- Sensor Protection: IP68
- Overload Capacity: 200% F.S
- Temperature Range: -30°C ~ +70°C
- Lifespan: ≥10 years
- Power Supply: 230V, 50Hz (±10%)
- Size: 3640 * 1050 * 340 mm
